類別：固裝系列
簡介： P5 indoor/outdoor led display is one of the widely used led display in the market now, usually applied in commercial ads, stadium, stage rental...... Features: 1. High definition 2. only5kglightweight 3. IP65 protection 4. frontmaintenancedesign 5. high cost performance, 30% cheaper. Indoor/OutdoorP5ledscreen Physicalp...

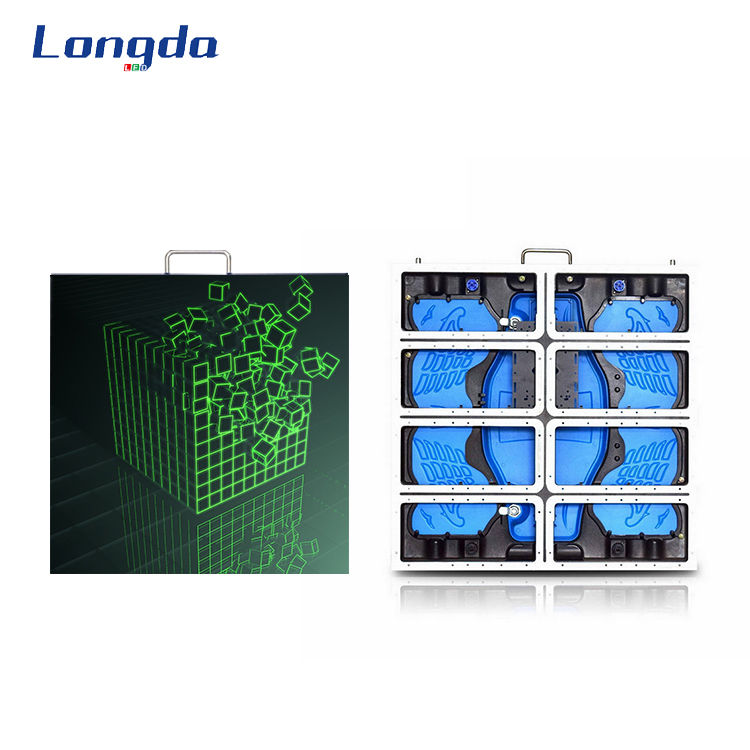

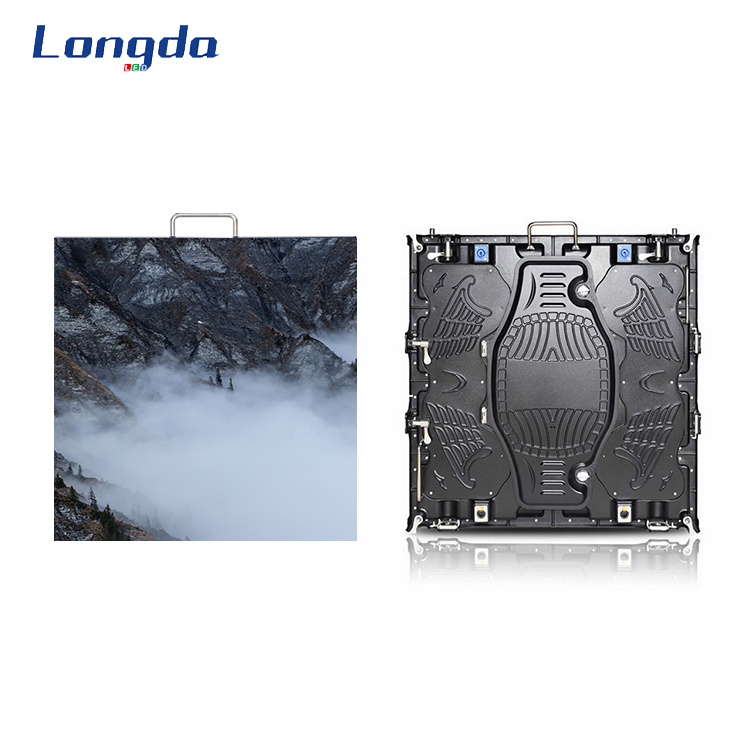

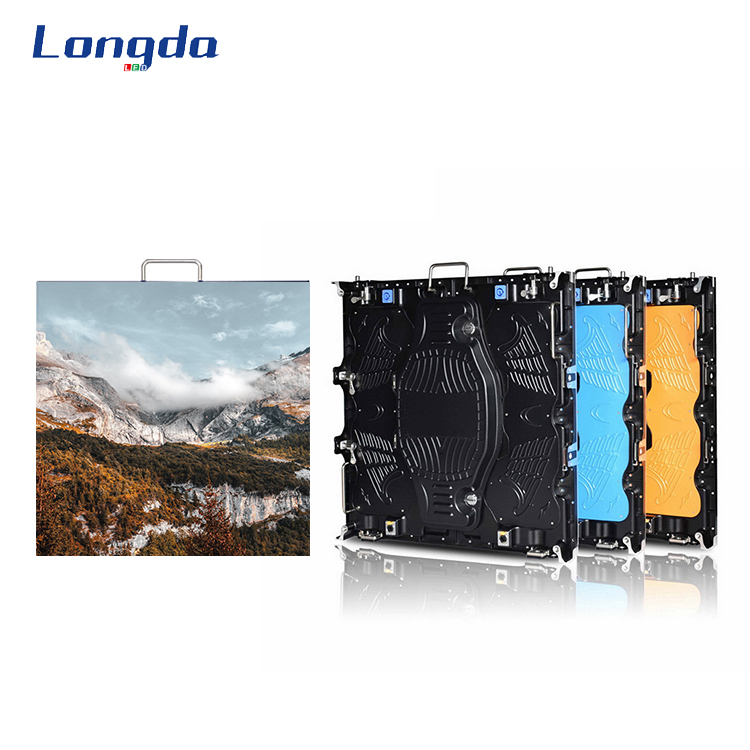

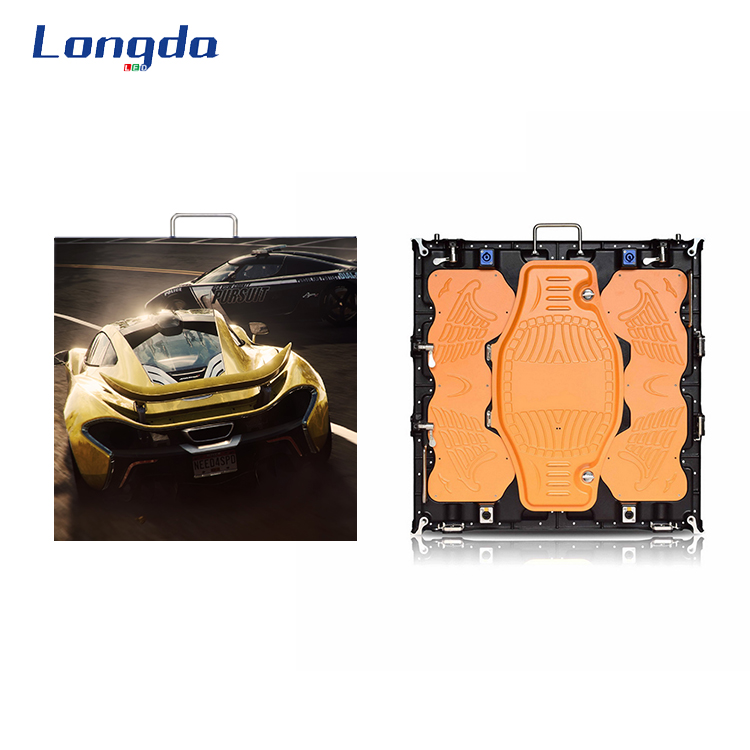

P5 indoor/outdoor led display is one of the widely used led display in the
market now, usually applied in commercial ads, stadium, stage rental......
Features:
1. High definition
| Indoor/Outdoor P5 led screen | |
| Physical parameters: | |
| Pixel pitch: | P5 |
| Physical density: | 40000 dots/m2 |
| Led packing: | SMD3528/SMD2727 |
| LED composition: | 1R1G1B |
| Cabinet size: | 640x640mm/960x960mm |
| Caninet weight: | 7kg/28kg |
| Cabinet material: | Die-casting aluminum/Iron |
| Optoelectronic parameters: | |
| AC operation voltage: | 100~120V/220~240V |
| Scan: | 1/16S;1/8S |
| Brightness: | indoor 1000cd/m2 ;outdoor 5500cd/m2 |
| Gray level: | 14 bit |
| View distance: | 5~50m |
| View angle: | 140 degree horizon/vertical |
| Refresh rate: | ≥1920 |
| Life span: | 100,000h |
| Frame frequency: | ≥60Hz |
| IP rate: | indoor IP30/outdoor IP65 |
